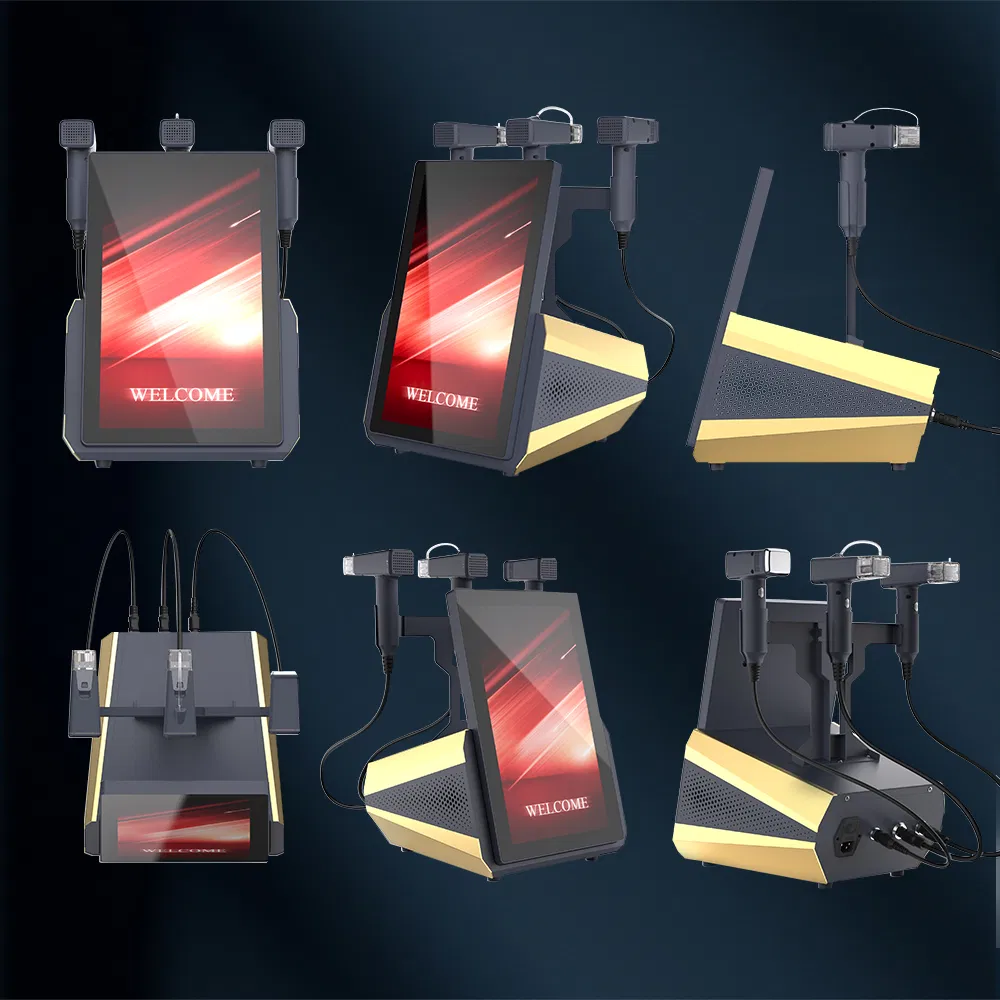

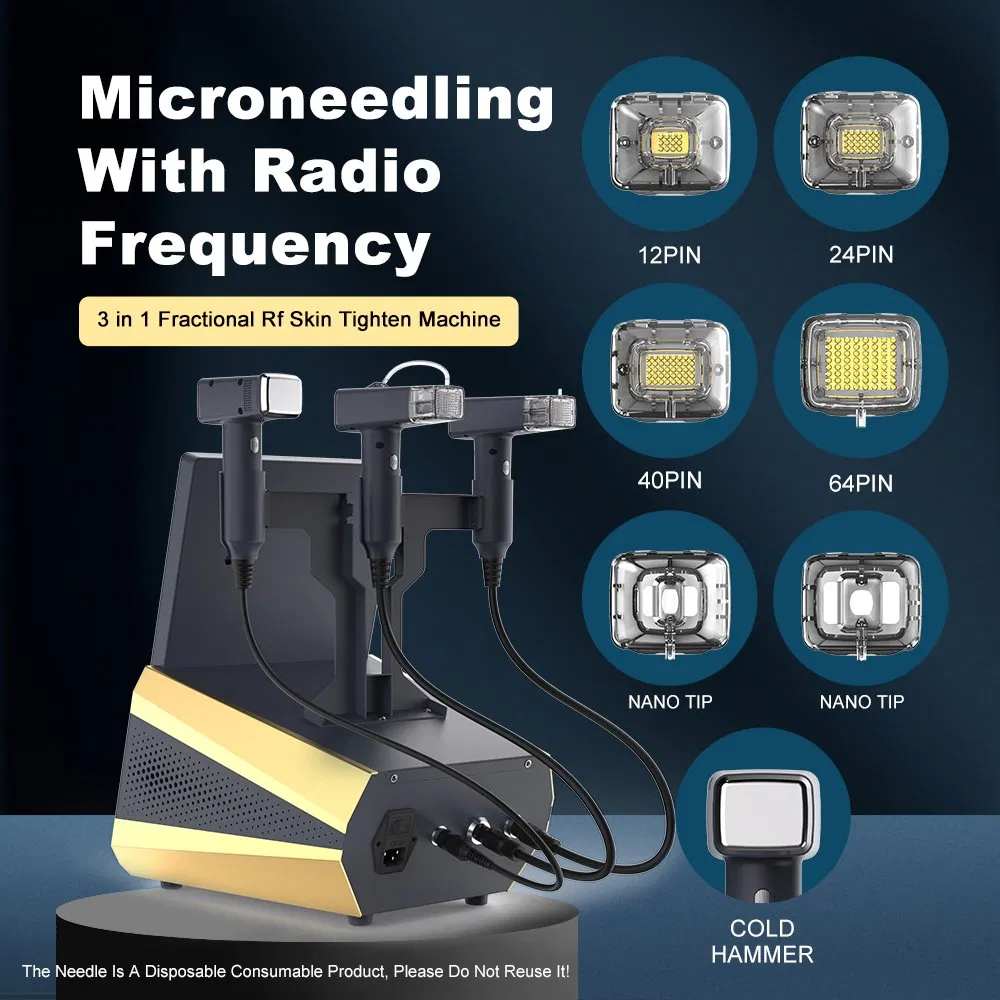

12 24 40 64 Pin Nano Tip Cold Hammer RF Microneedling Machine Facial Skin Tightening Acne Treatment Equipment Wrinkle Remover

Customization: Available
Type: RF Equipment
Theory: RF (Radio Frequency)

Product Description

Basic Specifications

Model NO. M8 Pro
Application Salon
Portable Non Portable
Technology Radiofrequency, Microneedling, Cold Hammer, Micron
RF Frequency 2-4MHz
Plugs Type Other, Us, Au, Cn, UK, EU, Jp, Za, It
Needle Depth 1-7.0mm
Needles 4PCS (12pin, 24pin, 40pin, 64pin, Nanocry*2)
Single Gross Weight 25kg
RF Power 200W-350W
Handle 3 in 1
Electrical Power 100-240va.50/60Hz 220va Under
Transport Package 60*60*60cm
Specification Desktop
Production Capacity 3000
12 24 40 64 Pin Nano Tip Cold Hammer RF Microneedling Machine Facial Skin Tightening Acne Treatment Equipment Wrinkle Remover

Product Details

Technical Specifications
Product name RF Micro Needle Machine
Output frequency 2-4M

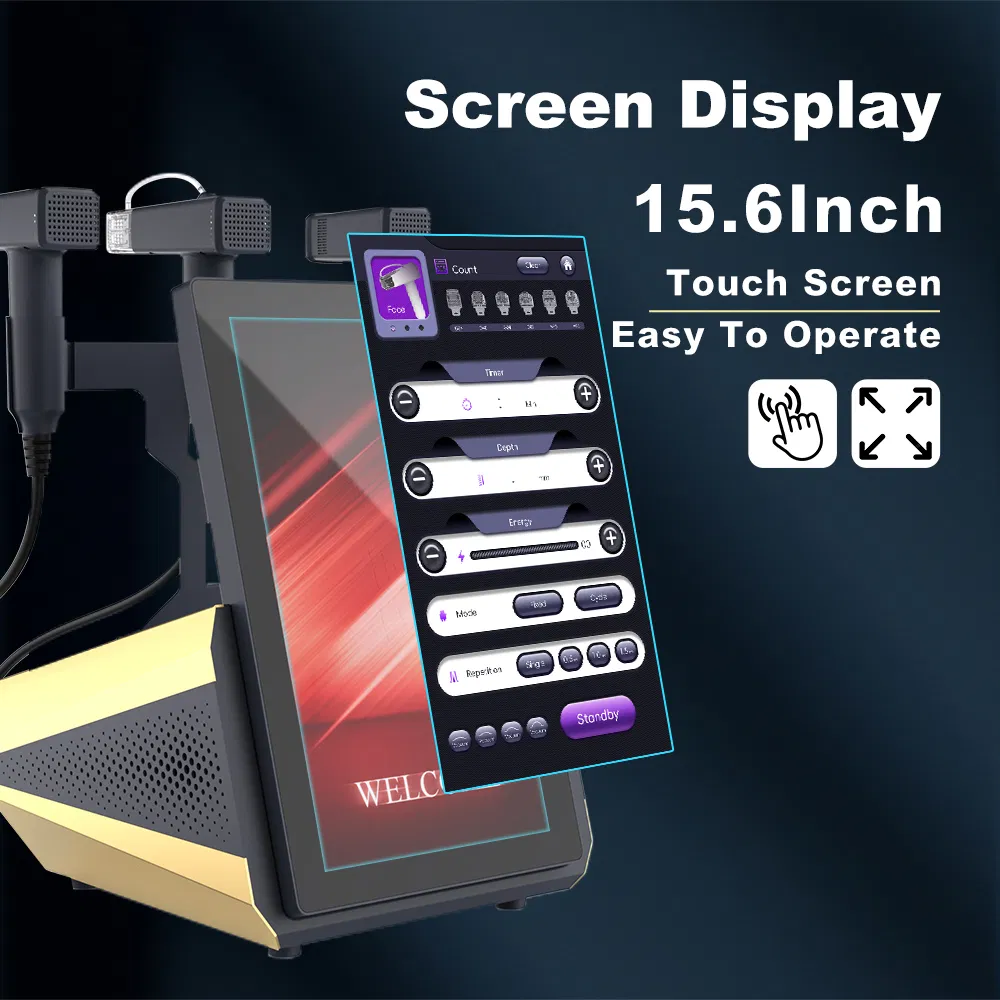

Display 15.6-inch color touch screen
RF Energy Density Max: 60J/cm
Probe 12P, 24P, 40P, 64P, Large RF Nano head, Small RF Nano head
Input power 10 - 200W

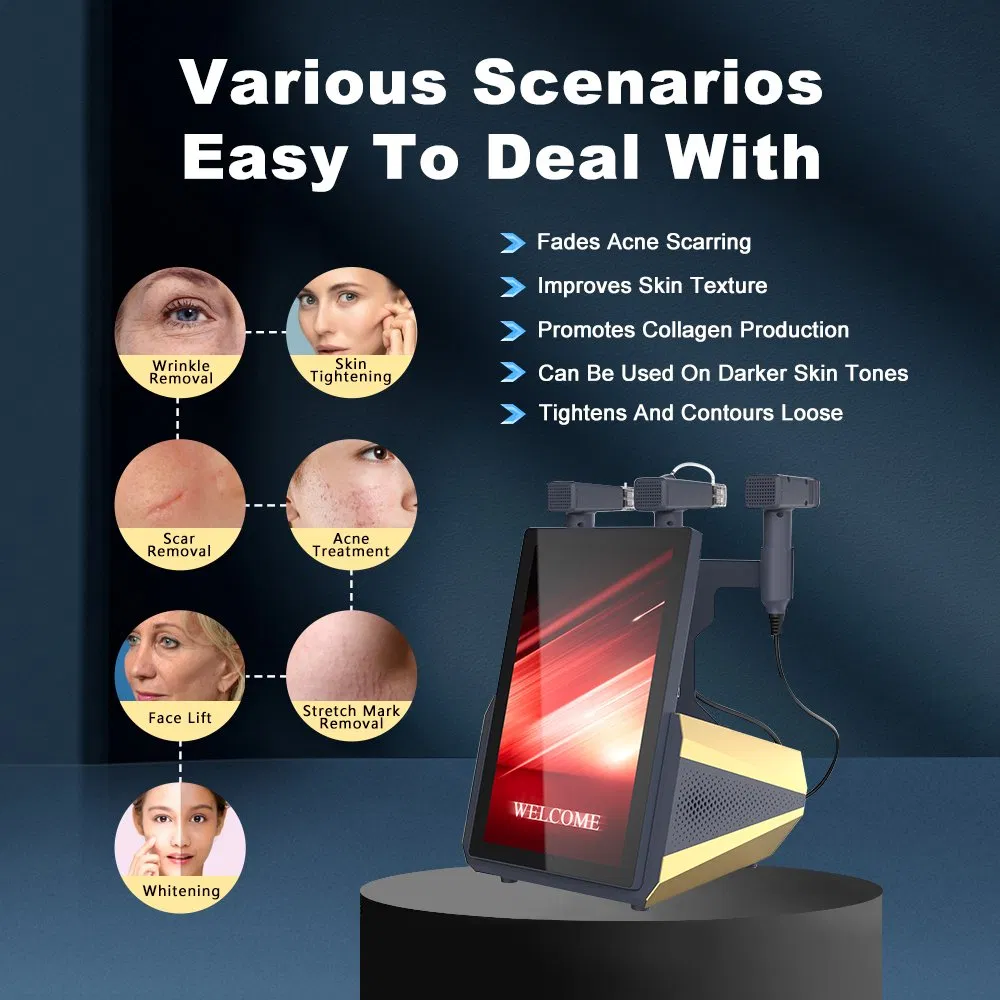

Functions

  • Remove wrinkles: crow's feet, forehead wrinkles, nasolabial wrinkles, neck wrinkles
  • Facial rejuvenation, firming, and lifting
  • Get rid of stretch marks
  • Improve large pores and dull skin
  • Improve red blood circulation / reduce redness
  • Skin whitening and brightening
  • Acne scars removal and depressed scars treatment
  • Regular advanced skin care

Instrument List

  • Mainframe: 1 unit
  • Gold RF micro crystal handle: 2 handles
  • 64P probe: 1 pc
  • 40P probe: 1 pc
  • 24P probe: 1 pc
  • 12P probe: 1 pc
  • Small negative pressure radio frequency head: 1 pc
  • Large negative pressure radio frequency head: 1 pc
  • Ice hammer handle: 1 (S04-001 configuration)
  • Handle hanger: 1 pc
  • Power cord: 1 pc

Product Presentation

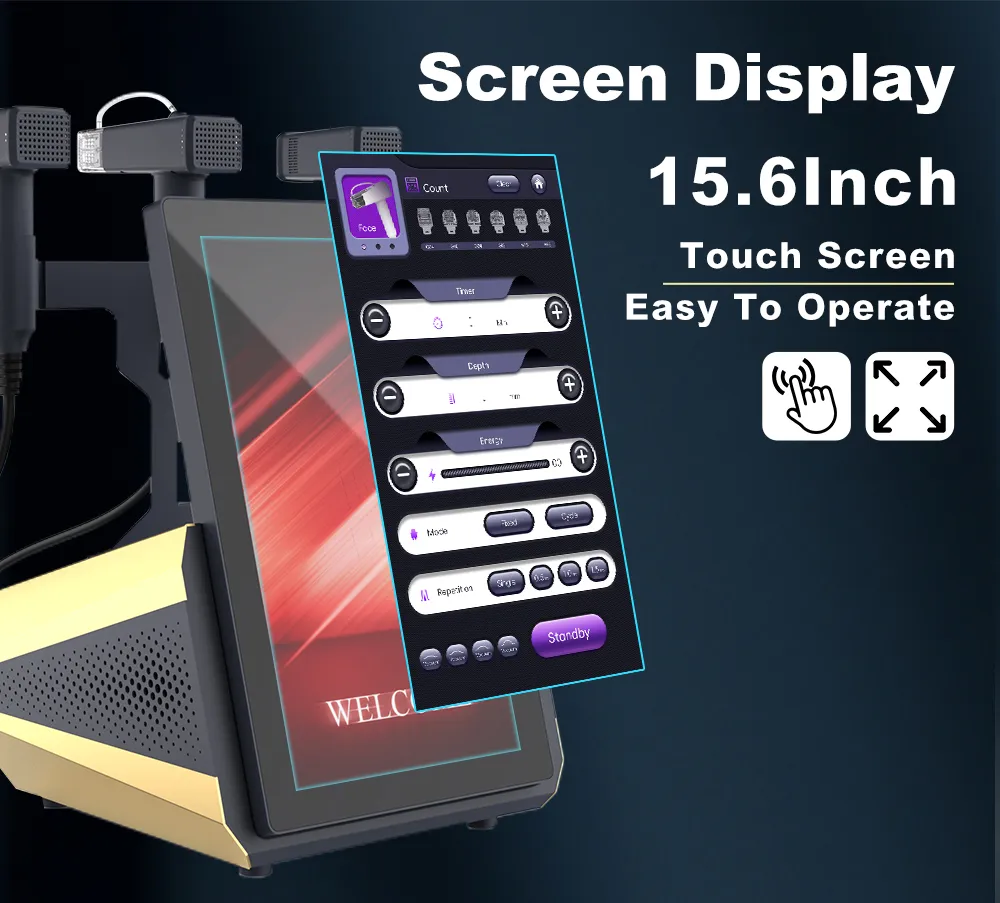

RF Microneedling Device Interface

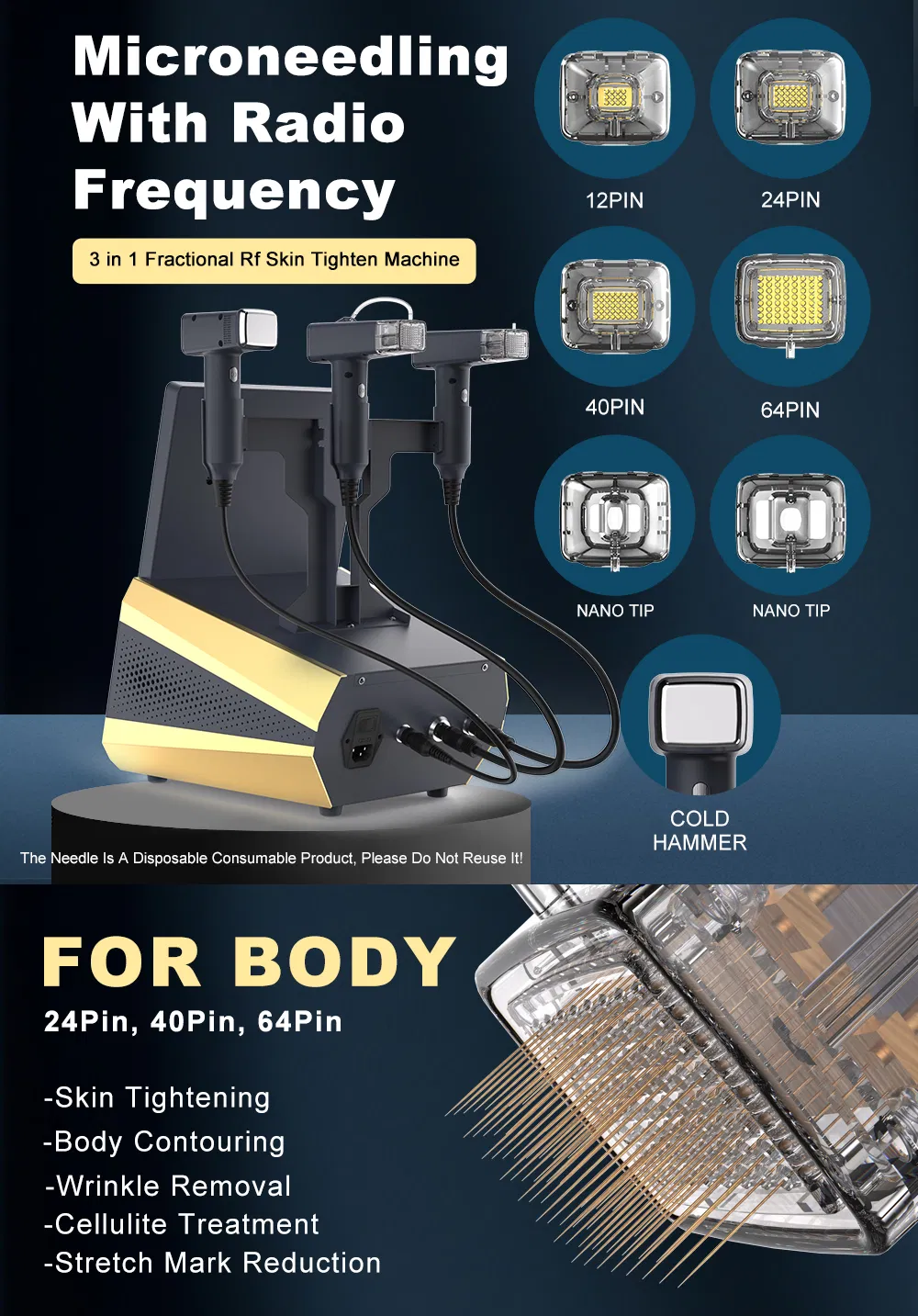

RF Microneedling Cartridges
Before and After Results

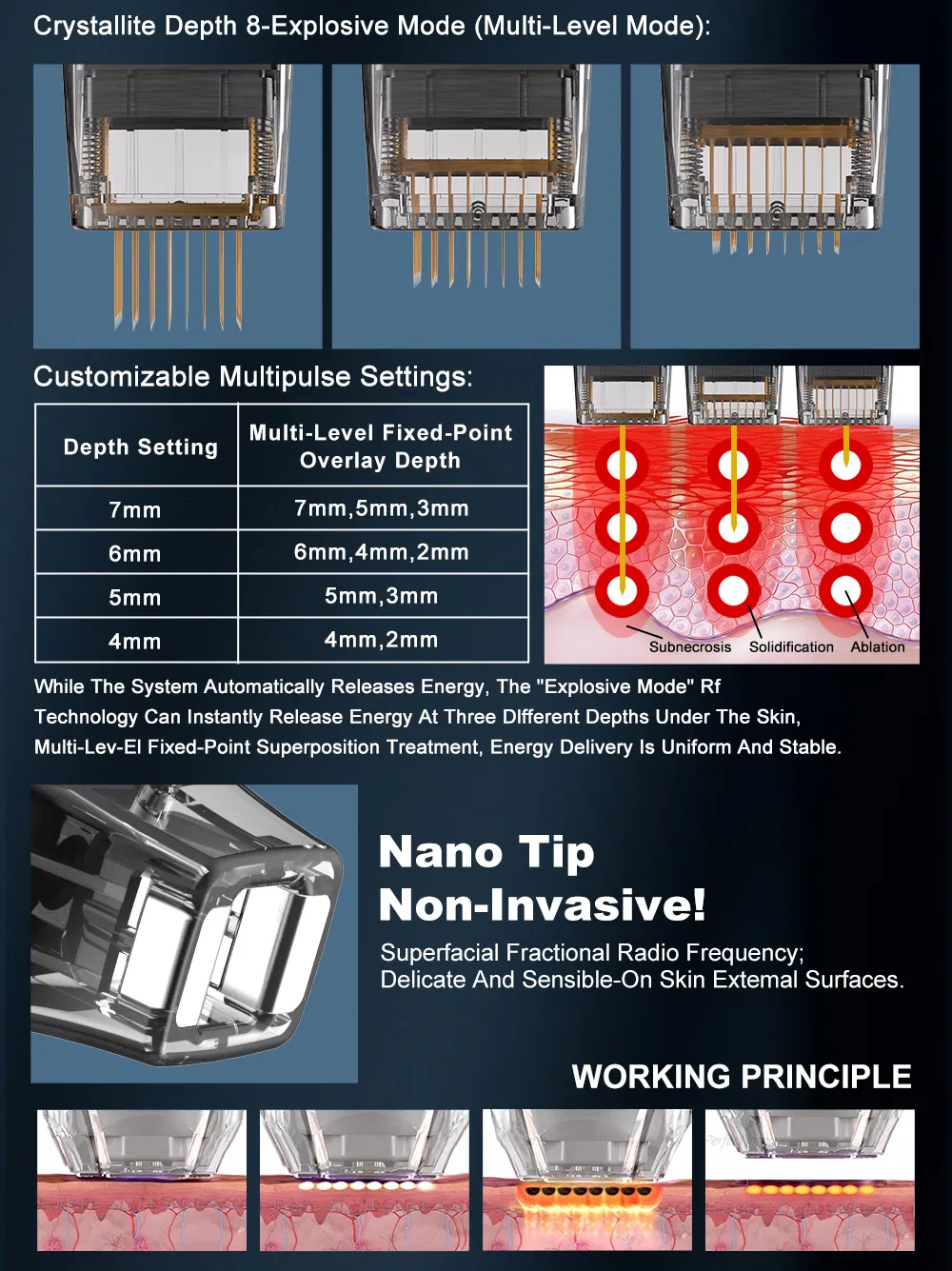

Handpiece and Accessories
Treatment Session Reference

Operating Interface Parameters

Operating Area Depth Speed (Energy Output Time) Suction Power RF Size
Forehead 0.5-1.0mm 0.2-0.3 1-2 60-110W
Face 1.0-1.5mm 0.2-0.3 1-2 60-100W
Eye area 0.5-1.0mm 0.2-0.3 1-2 60-100W
Chin 0.5-1.2mm 0.2-0.3 1-2 60-100W
Nose 0.5-1.0mm 0.2-0.3 1-2 60-100W
Neck 1.0-1.5mm 0.2-0.3 1-2 60-100W
Pockmarks 1.0-2.0mm 0.2-0.3 1-2 60-100W
Scars 1.0-2.0mm 0.2-0.3 1-2 60-120W
Tummy 1.0-3.0mm 0.2-0.3 0-2 60-120W

Technology & Application Detail

Technology Mechanism Diagram
RF Energy Delivery
Skin Layer Analysis
Handle Features Display
Clinical Treatment Comparison

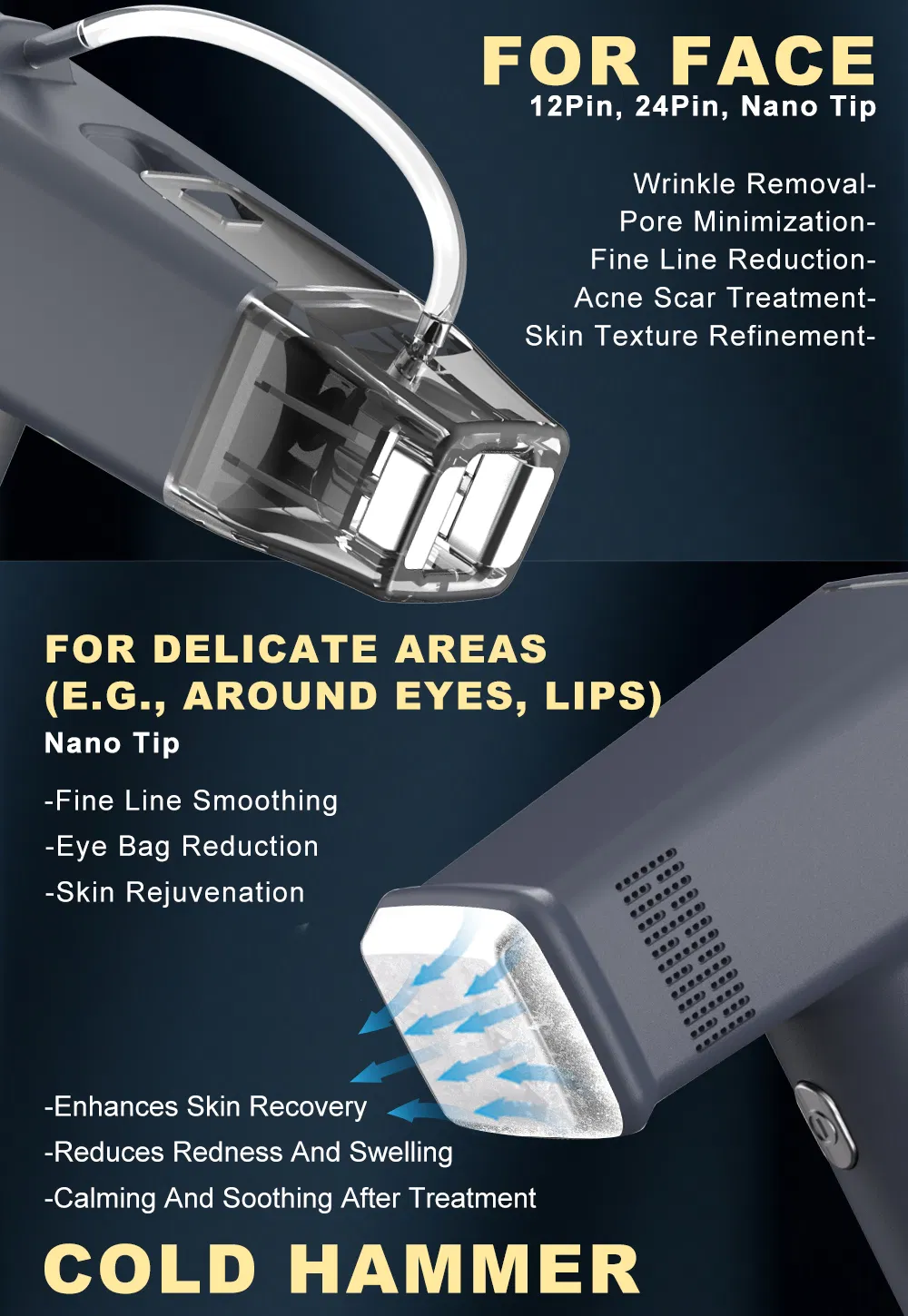

Cooling Hammer Function
Treatment Guidelines Chart

Frequently Asked Questions

Q1: How does RF Microneedling technology work?

RF (Radiofrequency) Microneedling combines traditional microneedling with fractional radiofrequency energy. The insulated micro-needles penetrate the skin at precise depths, releasing thermal energy in the dermis layer. This dual-action stimulates collagen and elastin production, leading to tighter, smoother, and more youthful skin.

Q2: What needle depths are supported, and are they adjustable?

The M8 Pro device supports an adjustable needle depth range from 1.0mm up to 7.0mm. The depth can be precisely calibrated based on the target area, allowing for shallow treatments on delicate areas like the forehead and eye area, or deeper energy delivery on areas like the neck and tummy.

Q3: What is the purpose of the Cold Hammer feature?

The Cold Hammer handle serves to soothe, calm, and cool down the skin immediately after the micro-needling procedure. It helps reduce post-treatment redness, minimizes swelling, closes pores, and enhances overall client comfort.

Q4: How many types of treatment tips are included in the package?

The package includes 4 primary gold-plated needle configurations (12-pin, 24-pin, 40-pin, and 64-pin), alongside negative pressure RF heads (both large and small sizes) and Nano crystallite tips, ensuring versatility for face, body, and localized spot treatments.

Q5: What are the recommended parameter settings for face lifting versus body treatments?

For facial tightening, we generally recommend a depth of 1.0-1.5mm, suction level 1-2, and an RF power of 60-100W. For thicker body tissue like the tummy, the depth can be adjusted to 1.0-3.0mm with RF output set between 60-120W, optimizing energy delivery for larger target areas.
