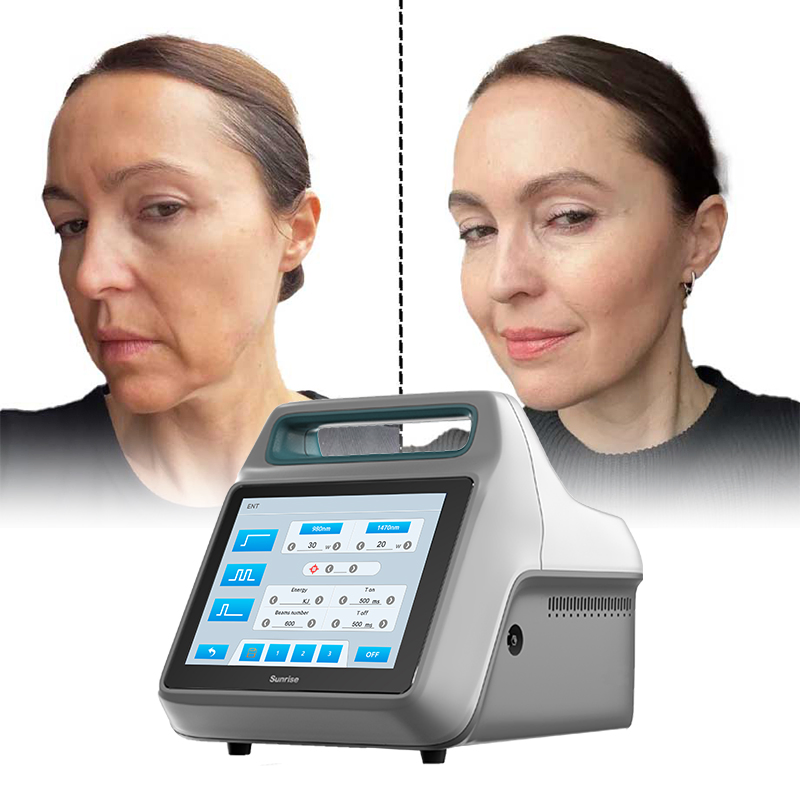

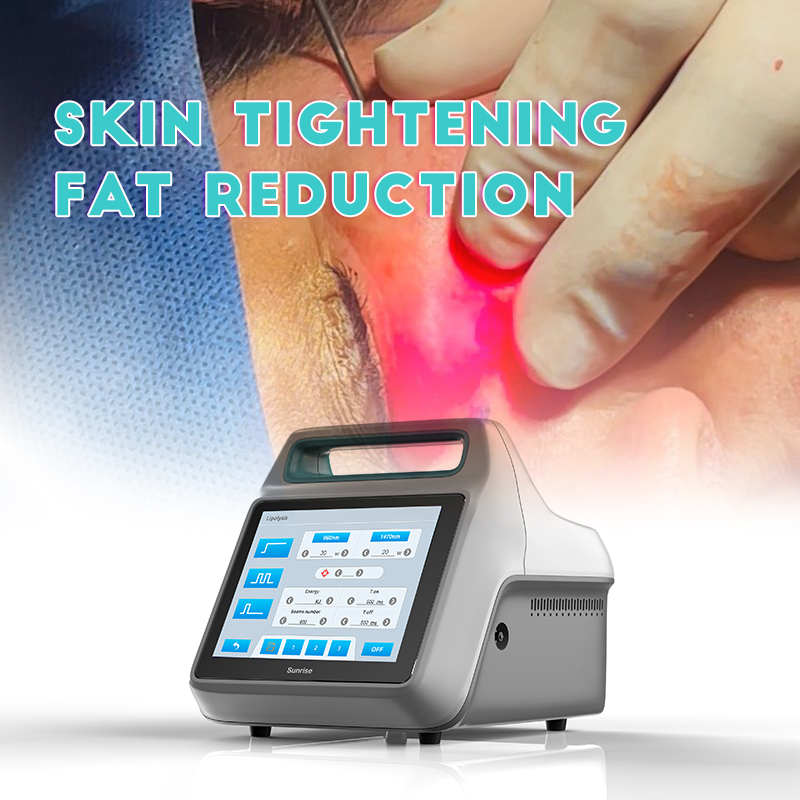

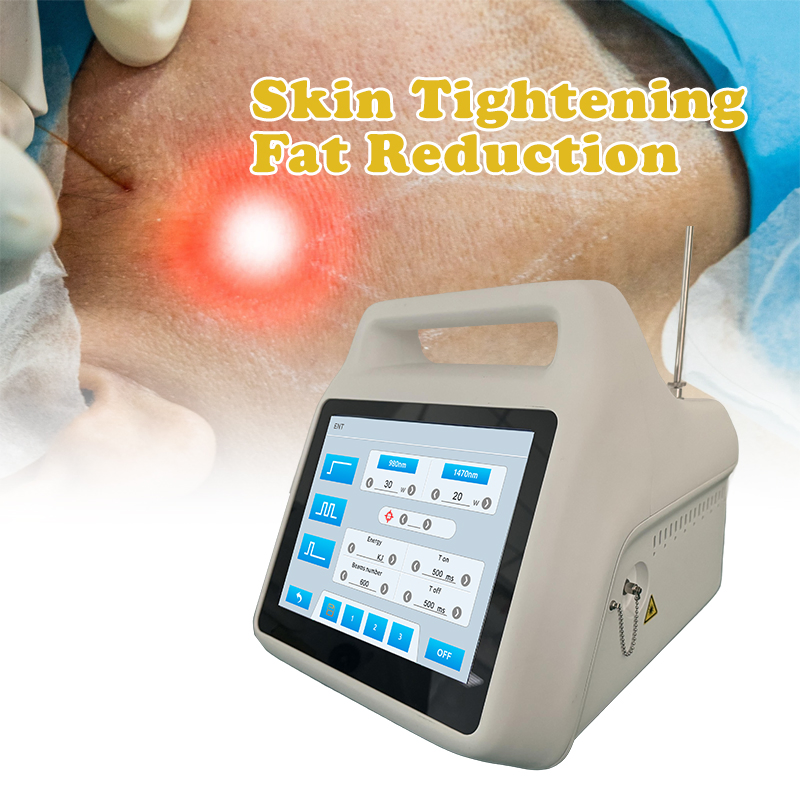

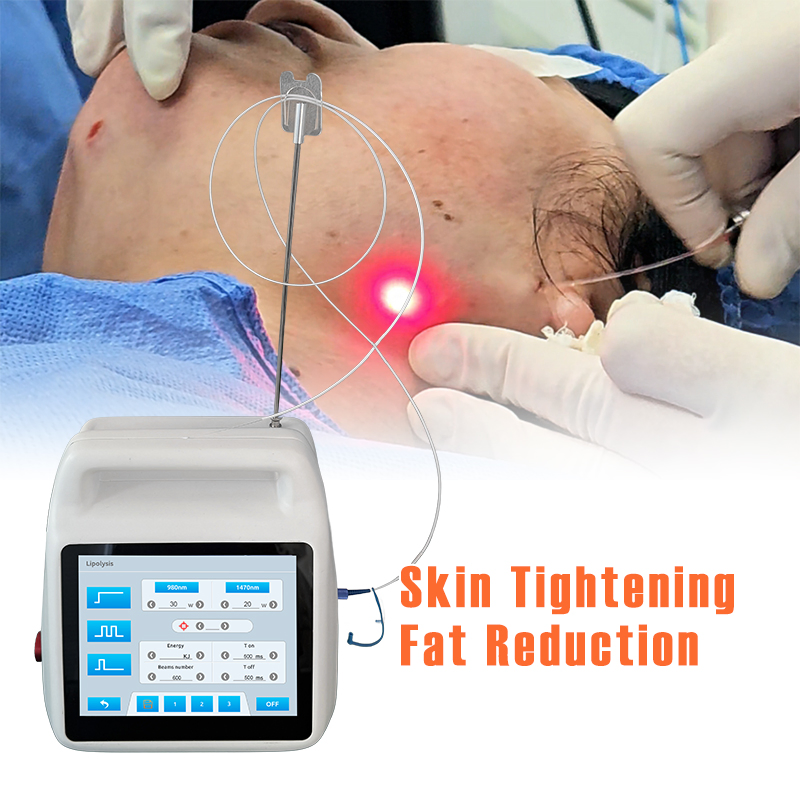

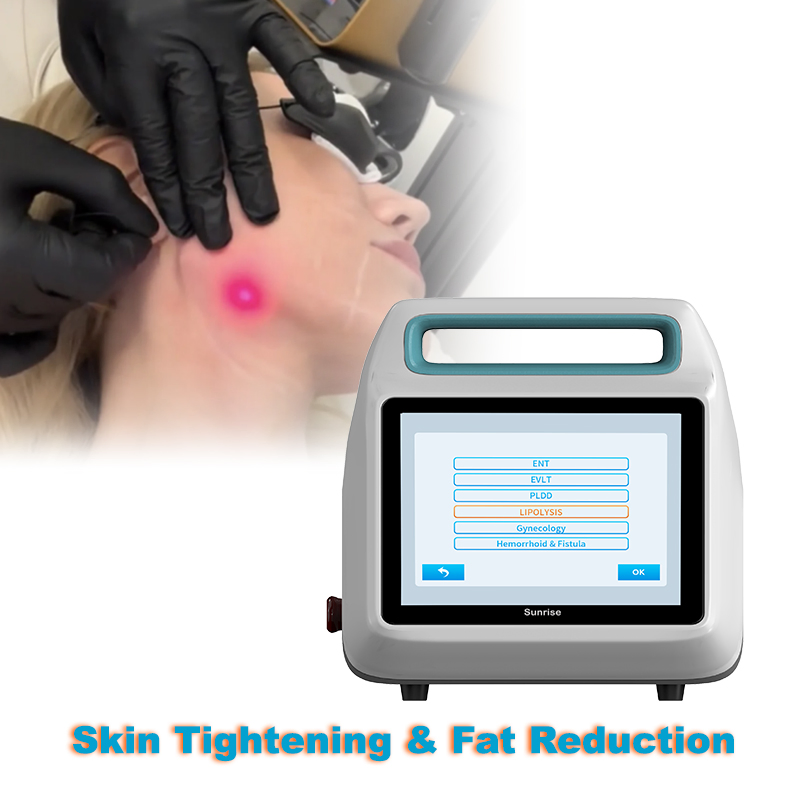

Portable 30+20W 980 1470 Diode Laser Belly Fat Removal Facial Lifting Endo Lifting Lipolysis Liposuction Endolaser Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

  • Overview
  • Working Theory
  • Advantage
  • Product Parameters
  • Surgery
  • After Sales Service
  • FAQ
Basic Info.
Model NO.
980 1470nm lipolysis laser
Laser Type
Diode Laser
Fiber
400um, 600um, 800um
Fiber Connector
SMA905
Laser Power
30W/980nm±10%, 20W/1470nm±10%
Laser Output Mode
Continuous, Pulse , Single
Pulse Width
0.05ms-1s
Delay
0.05ms-1s
Voltage
AC110V-220V, 60Hz
Aiming Beam
650nm
Cooling
Air Cooling
Weight
24kg
Category 1
Laser Beauty Equipment
Category 2
Fat Removal Machine
Category 3
Slimming Machine
Transport Package
Aluminum Alloy Box
Specification
55*50*45cm
Origin
China
HS Code
8543709990
Production Capacity
1000 Unit/Year
Product Description

980+1470nm Diode Laser Endolift Machine

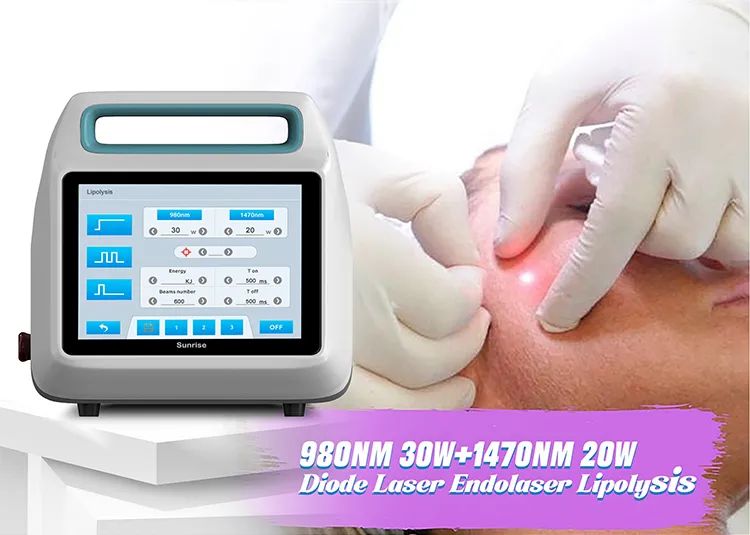

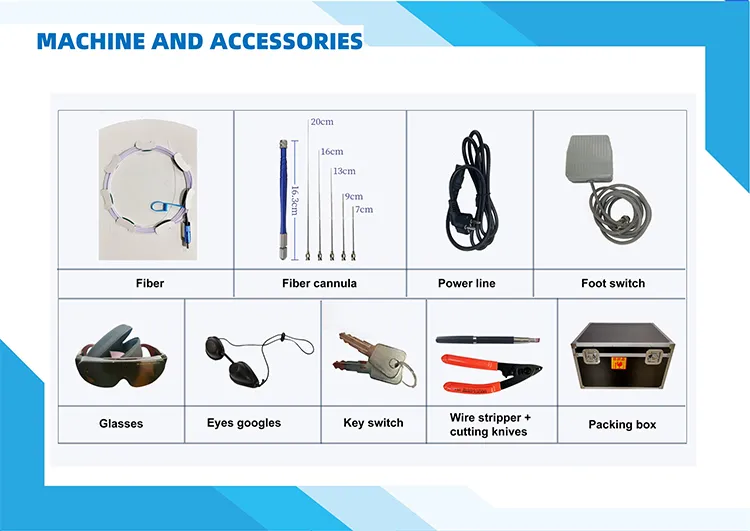

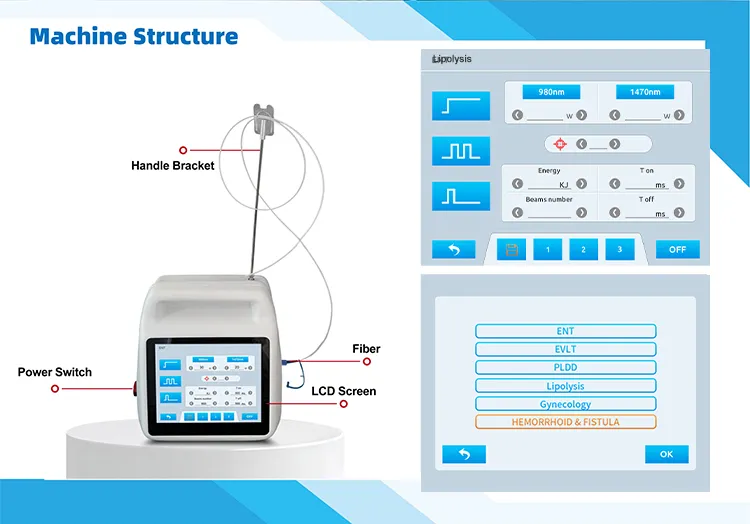

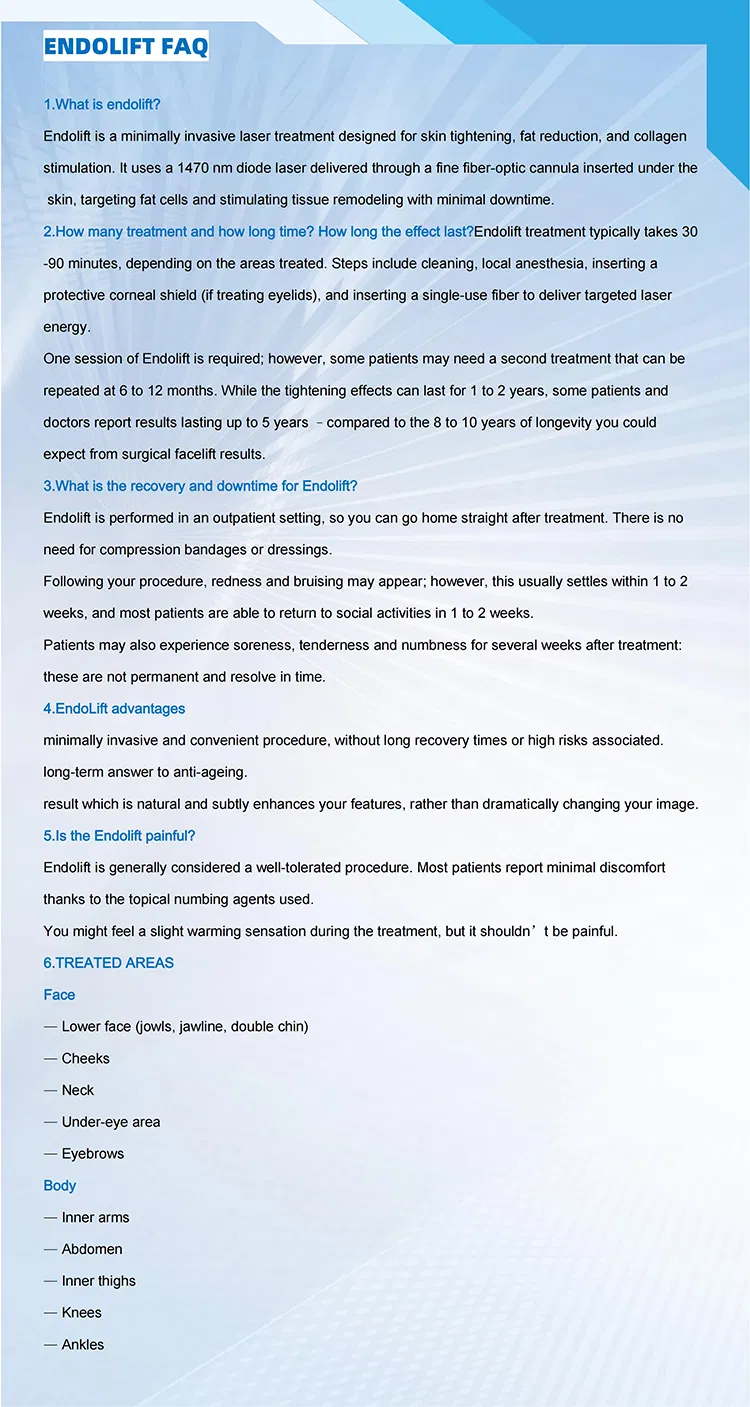

Laser Machine Design Endo Lifting View Belly Fat Lipolysis Facial Lifting Treatment Diode Laser Interface Slimming Handpieces Before and After Results Laser Fibers Configuration Clinical Application Setup Accessories and Connectors Treatment Guidelines

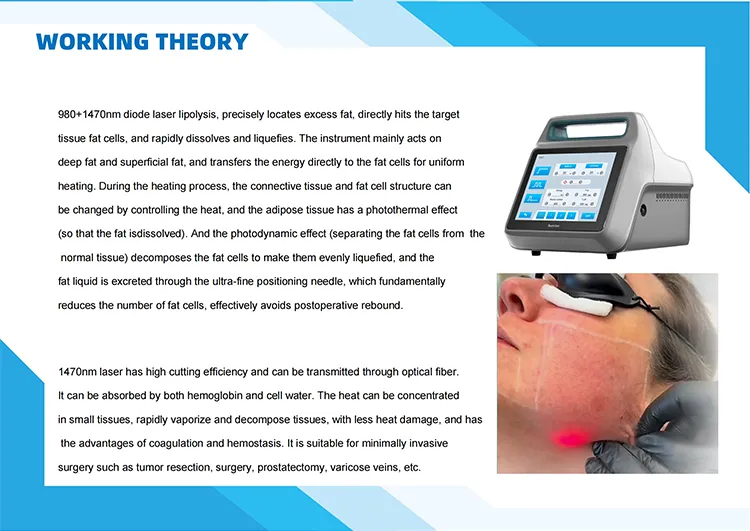

Working Theory

The 1470nm wavelength has a high degree of water absorption in the tissue, and 980 nm provides high absorption in hemoglobin.

The irreversible photo-thermal process induced by the laser energy results in a complete occlusion of the treated vein. The lower energy level needed using the radial laser fiber significantly minimized adverse effects compared with the bare laser fiber.

It's intended mainly to remove body fat that's difficult to lose through diet or exercise, such as: fat deposits on the upper outer thighs, belly fat around the torso and double chins.

Advantage

With laser lipolysis, fat cells are liquefied using a very precise laser beam. The energy of the diode laser is converted into heat and this gently dissolves the fat tissue. The capillaries supplying blood and the surrounding connective tissue are also heated during the process. This heating results in immediate hemostasis and, via the regeneration of collagen fibers, leads to a visible tightening of the subcutaneous connective tissue and skin.

A wavelength of 1470nm produces the optimum conditions for efficient vaporization of the fat tissue and for tightening the overlying connective tissue. Coagulation of the blood vessels, on the other hand, is achieved by using a complementary wavelength of 980 nm.

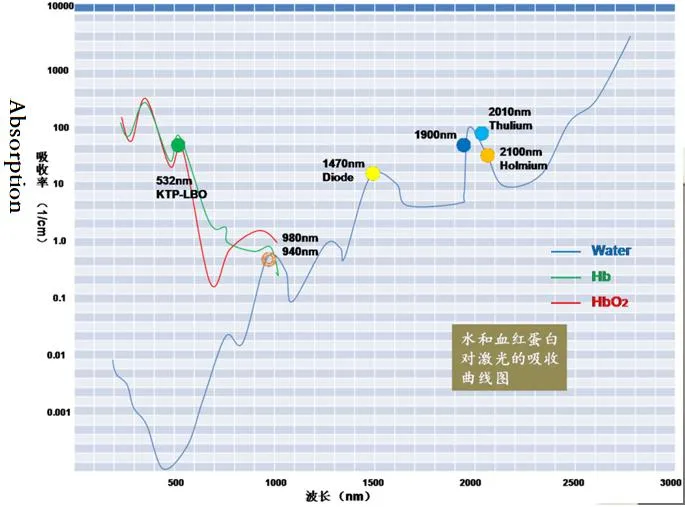

Advantage Graph

Laser lipolysis is a procedure in which localized fat deposits are reduced surgically by means of a special laser housed inside a tiny tube called a cannula. Unlike traditional liposuction, laser lipolysis does not use suction. This procedure offers benefits on par with traditional liposuction, although it is generally recommended for smaller areas.

In fact, this procedure is gaining popularity for use on the face, especially as a way of re-defining the jawline and getting rid of the dreaded "second chin" that creeps up on some of us as we get older.

Laser lipolysis has many advantages over traditional liposuction. First, it is gentler and safer, partly due to the much smaller cannulas. Second, the smaller cannulas mean smaller incisions, so there is less scarring. Finally, because of the heat generated by this method, there is another very important benefit: The body's own healing response causes tissues to contract, leaving skin tighter and smoother in the treated area. This is good news indeed, since the traditional liposuction method of merely "sucking out the fat" can sometimes leave patients with uneven contours and loose, sagging skin.

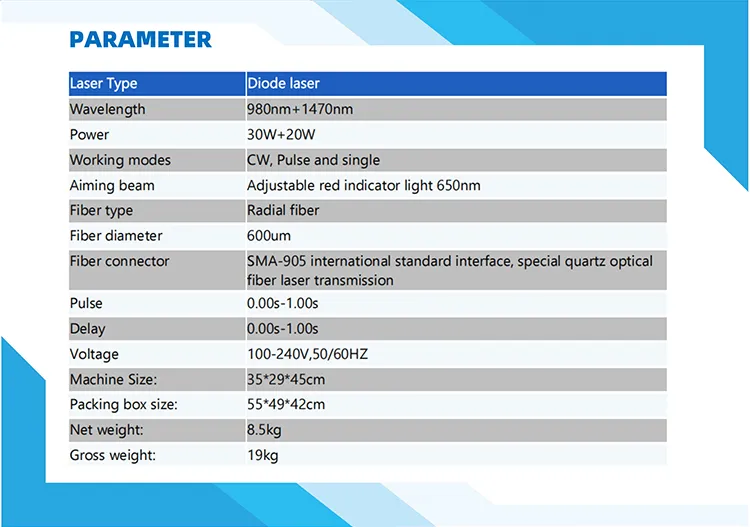

Product Parameters
Input Voltage 220V-50HZ/110V-60HZ 5A
Power 30+20W
Wavelength 980NM 1470NM
Frequency 1-5HZ
Pulse Width 1-200MS
Touch Screen 8 Inch
Cooling Air Cooling
Machine Dimension 56*50*42CM
Gross Weight 24KG
Surgery
Surgery Procedure Diagram
After Sales Service
After Sales Service Flow
Frequently Asked Questions
What is the advantage of combining 980nm and 1470nm wavelengths?
The 1470nm wavelength targets water in the tissue to efficiently vaporize fat and tighten the surrounding connective tissue, while the 980nm wavelength targets hemoglobin to coagulate blood vessels and minimize bleeding or bruising.
How does laser lipolysis differ from traditional liposuction?
Unlike traditional liposuction, laser lipolysis does not rely on mechanical suction. Instead, a targeted laser beam liquefies the fat cells before they are absorbed or naturally metabolized, resulting in a gentler procedure with smaller incisions and less downtime.
What target areas can be treated with this laser machine?
This system is highly effective for localized fat deposits that are difficult to reduce via diet or exercise. Common target areas include the double chin, face/jawline contours, abdomen, torso, and upper outer thighs.
Does this treatment help with loose skin?
Yes. The thermal energy delivered by the diode laser stimulates the regeneration of collagen fibers, which promotes immediate tissue contraction and leads to smoother, tighter skin in the treated area.

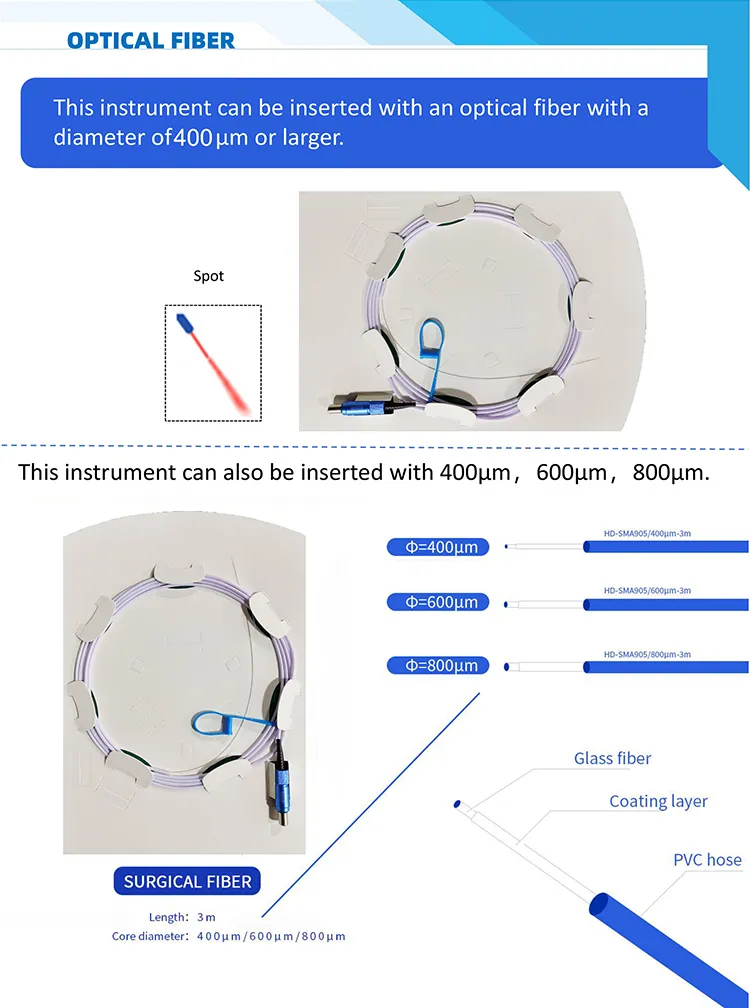

What sizes of optical fibers does the machine support?
The machine supports 400um, 600um, and 800um fibers connected via standard SMA905 interfaces, allowing operators to choose the optimal fiber size for different treatment depths and areas.
What is the cooling method used by this device?
The system utilizes an integrated air-cooling mechanism to maintain stable operating temperatures and ensure reliable performance during continuous use.
